Prinzing PKSE circular shear (motorized)
Article number:
PKSE 10:
156020
PKSE 15:
156025

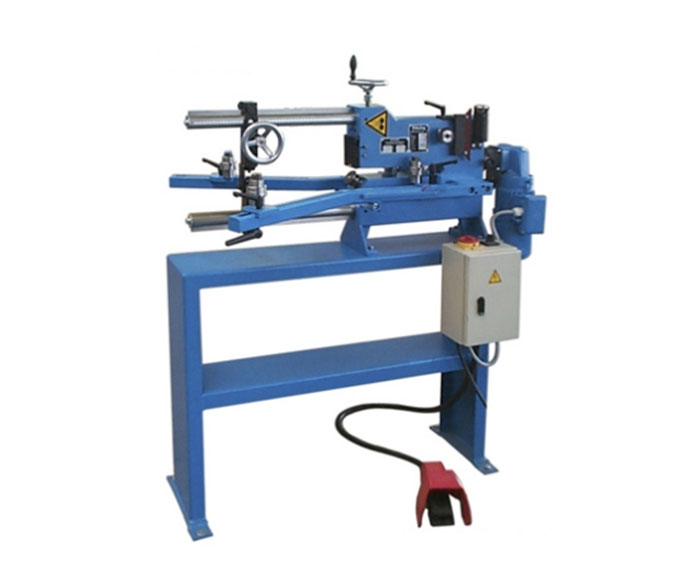

The machine body of this motor-driven circular shear is made of robust cast iron construction, which provides high stability with low weight. The clamping and round guiding device is mounted on the front side of the machine body. The upper knife is driven by a hand crank, the infeed and the clamping of the workpiece by hand wheels.
Normal accessories
Standard knife
Special accessories
Base frame, special knife for VA materials, connection cable, others on request
| Technical data | PKSE 10 | PKSE 15 |
|---|---|---|
| Technical data:For base diameters from | PKSE 10:60-1000 mm | PKSE 15:60-1500 mm |
| Technical data:For strip widths from | PKSE 10:20-200 mm | PKSE 15:20-200 mm |
| Technical data:Max. Sheet thickness (steel 400 N/mm²) | PKSE 10:1,5 mm | PKSE 15:1,5 mm |
| Technical data:Drive power | PKSE 10:0.30/0.43 kW | PKSE 15:0.30/0.43 kW |
| Technical data:Operating speeds | PKSE 10:11/22 m/min | PKSE 15:11/22 m/min |
| Technical data:Supply voltage | PKSE 10:380 V | PKSE 15:380 V |
| Technical data:Weight approx. | PKSE 10:85 kg | PKSE 15:100 kg |
| Technical data:Packing dimensions | PKSE 10:120 x 22 x 70 cm | PKSE 15:170 x 22 x 70 cm |
Design subject to change without notice.
